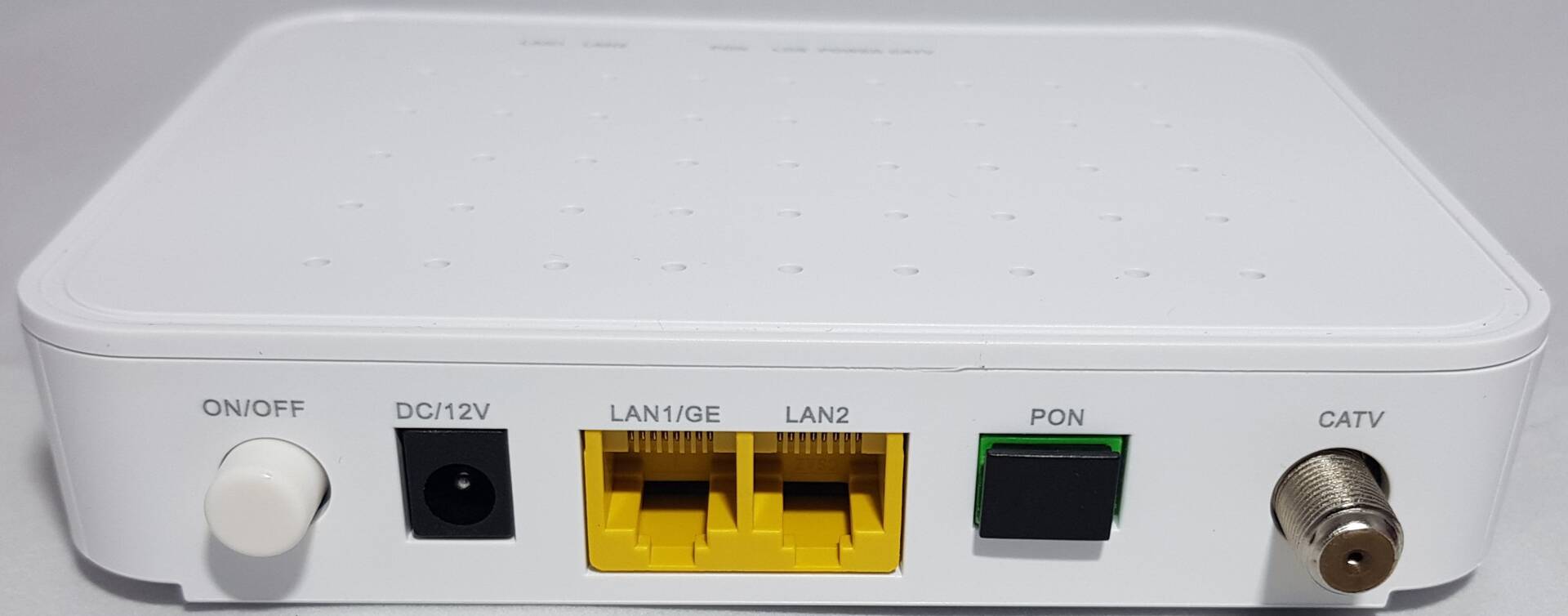

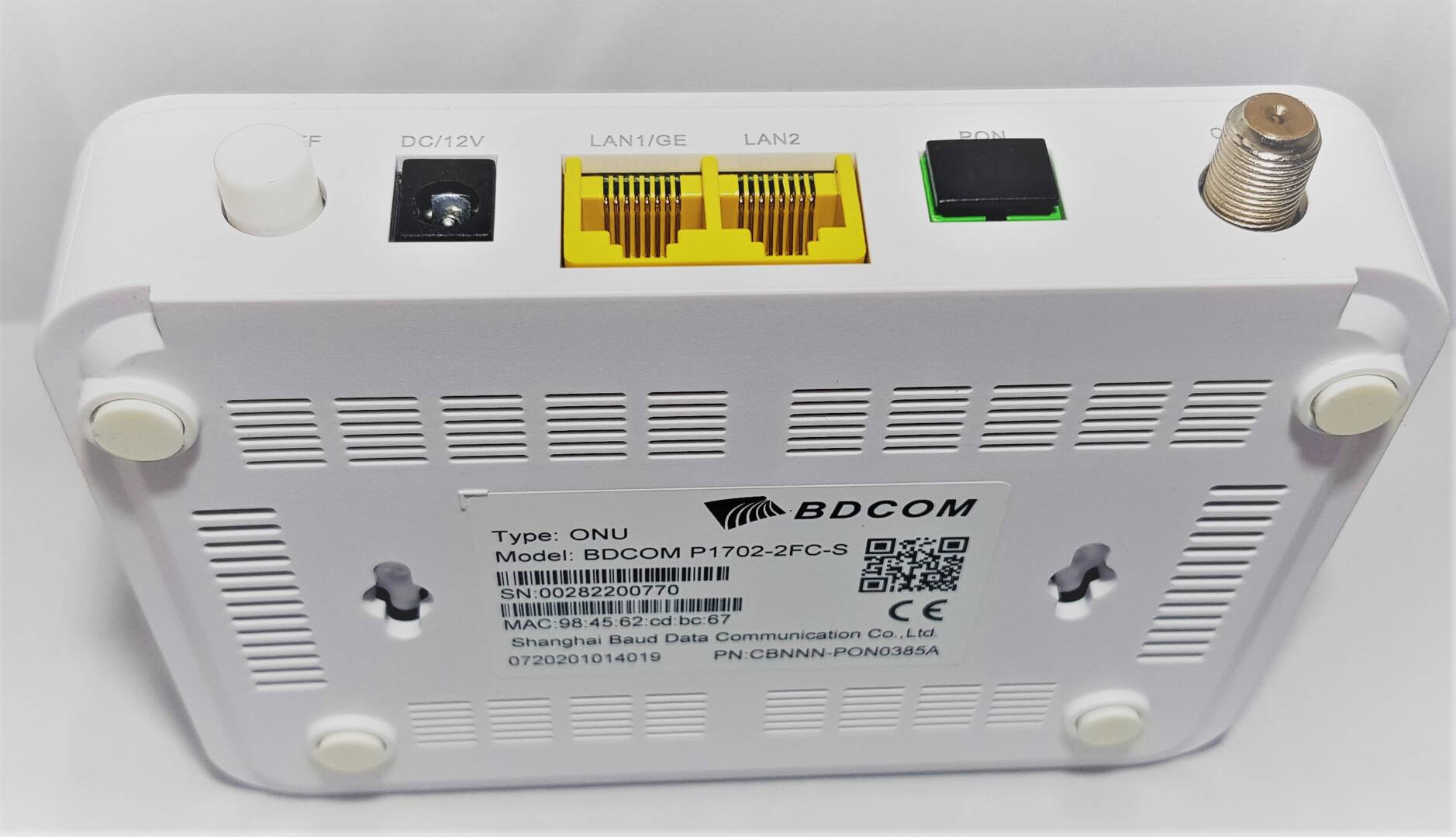

ONU BDCOM P 1702 – 2FC – S

ONU BDCOM P 1702 – 2FC – S


· 1 SC/APC

· 1 GE + 1 FE TX

· RF port

Product Overview

BDCOM P1702 Series is a new generation smart ONU for integrated multi-service broadband access networks. P1702 Series, involving multiple models, supports common enterprise broadband access service, POE service and oudoor t wide-temperature. P1702 Series is complied with the international standard IEEE 802.3ah and YD/T 1475-2006 and China Telecom EPON Technical Requirement CTC. P1702 Series has 7 models: P1702-1G, P1702-2FC-S, P1702-4F, P1702-4FC-S, P1702-4G,P1702-4G-POE and P1702-4G-IE.

Product Characteristics

High Access Capacity P1702 Series supports the symmetric uplink/ downlink 1.25Gbps PON transmission rate. Connected with BDCOM OLT, it can realize 1:64 splitting ratio. The network covering radius can reach to 20km. Secure Service Carrying Ability For ensuring the secure service carrying ability of ONU, BDCOM has developed techniques including VLAN, STP, ACL, QoS, security filtering and Broadcast Storm Control. High Service Control Capability P1702 Series supports DBA and Rate-Limit. It supports advanced dynamic bandwidth distribution and accurate bandwidth limit, which enables users to appropriately share 1.25Gbps bandwidth resource. It also supports QOS function, which guarantees a reliable service quality and service priority. Rich OAM Function P1702 Series supports standard OAM and expanded OAM defined by Chinese Telecom CTC2.1/3.0, including configuration, alarm, performance monitoring, fault isolation and security management. It also supports private OAM defined by BDCOM. Complete Interaction Capacity P1702 Series is complied with IEEE802.3ah and relevant requirements for EPON ONU regulated in Technical Requirements of YD/T 1475-2006—Ethernet-Based EPON and China Telecom EPON Technical Requirement 2.1/3.0. Advanced Energy-saving Technique P1702 Series supports the “GreenTouch” architecture and “Smart@CHIP”. Varied Application Scenarios POE model P1702-4G-POE can support 802.af/at, working temperature of P1702-4G-IE can reach up to 70℃
